🦑 Simplify testing your local environment on physical devices by using Squid

Route a phone's traffic through SquidMan on your Mac so cookies, headers and hosts-file entries keep working when you test on real devices.

By Dennis Bruijn · · 2 min read · #testing #mobile #devtools

Originally published on Medium.

Banner with a pink octopus: Simplify testing your local environment on physical devices by using Squid

Big companies use a lot of HTTP cookies 🍪 to store all the information you need to interact with the application in a proper way. Besides using cookies there are other things to take care of like setting HTTP request headers or tweak your application to fix HTTP access control issues.

If you are working on your local machine and have setup all these things everything works well but when you need to test it outside of this machine i.e. on a physical Android or iOS device it’s a hard to get it all working.

Here’s where squid comes in

squid : Optimising Web Delivery

Basically, squid allows you to forward all your device requests through your machine so everything you’ve set stays set.

Squid is a fully-featured HTTP/1.0 proxy which is almost (but not quite — we’re getting there!) a fully-featured HTTP/1.1 proxy. Squid offers a rich access control, authorization and logging environment to develop web proxy and content serving applications.

How to install it?

I would recommend using SquidMan for configuring and running, SquidMan is a graphical installer and manager for the Squid proxy cache.

You can install SquidMan trough a brew cask

$ brew cask install squidman

Configure squid to use your OS host file

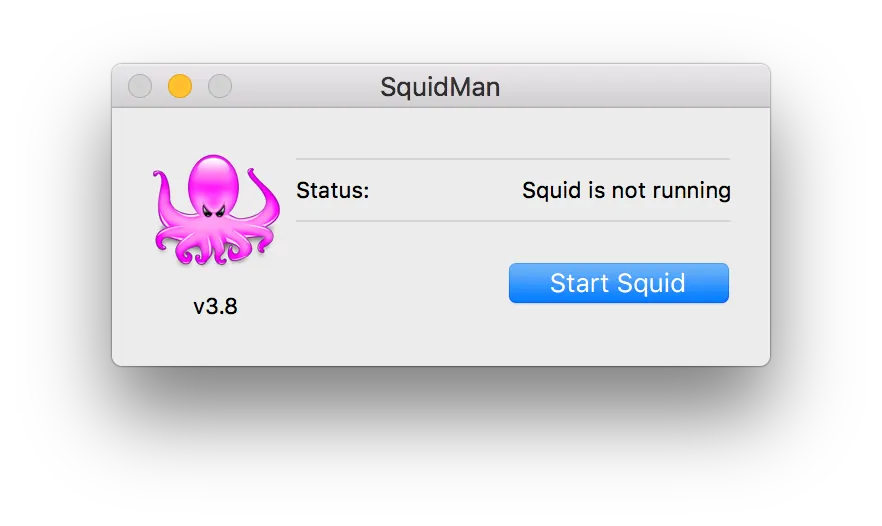

SquidMan 3.8 window showing “Squid is not running” and a Start Squid button

When you launch SquidMan you would see the following window, go to SquidMan > Preferences to configure it.

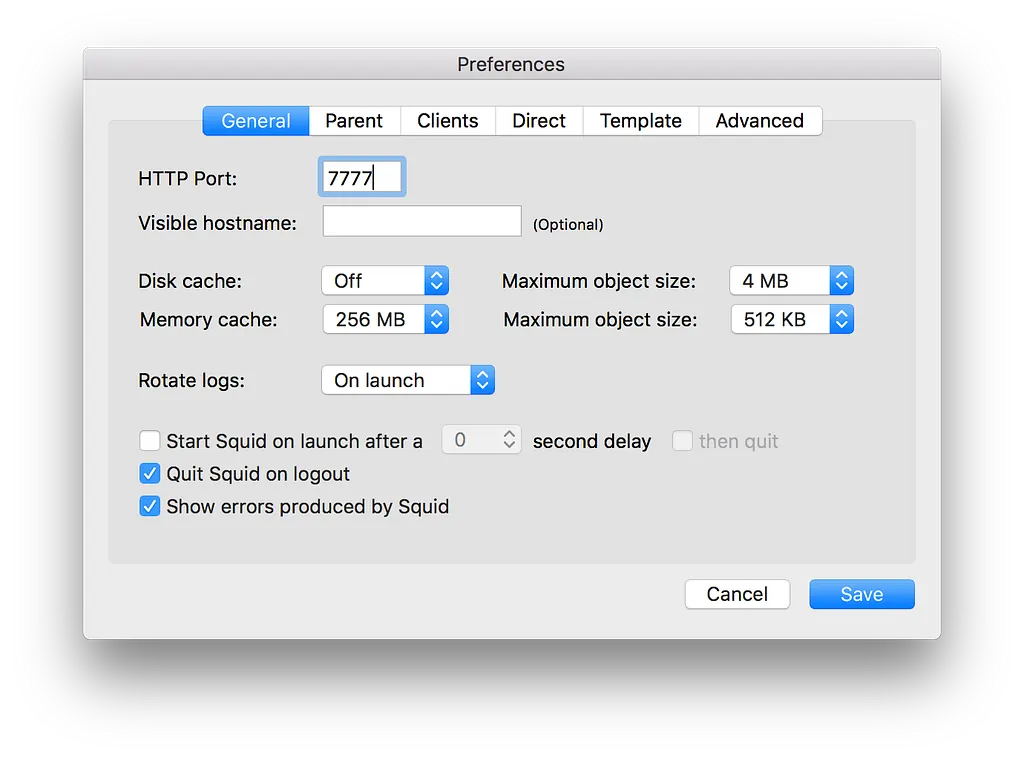

SquidMan General preferences with the HTTP port set to 7777

Once there go to General and change the port a less used one i.e. 7777.
After that go to template and add the following, if not already set.

#host file
hosts_file /etc/hosts

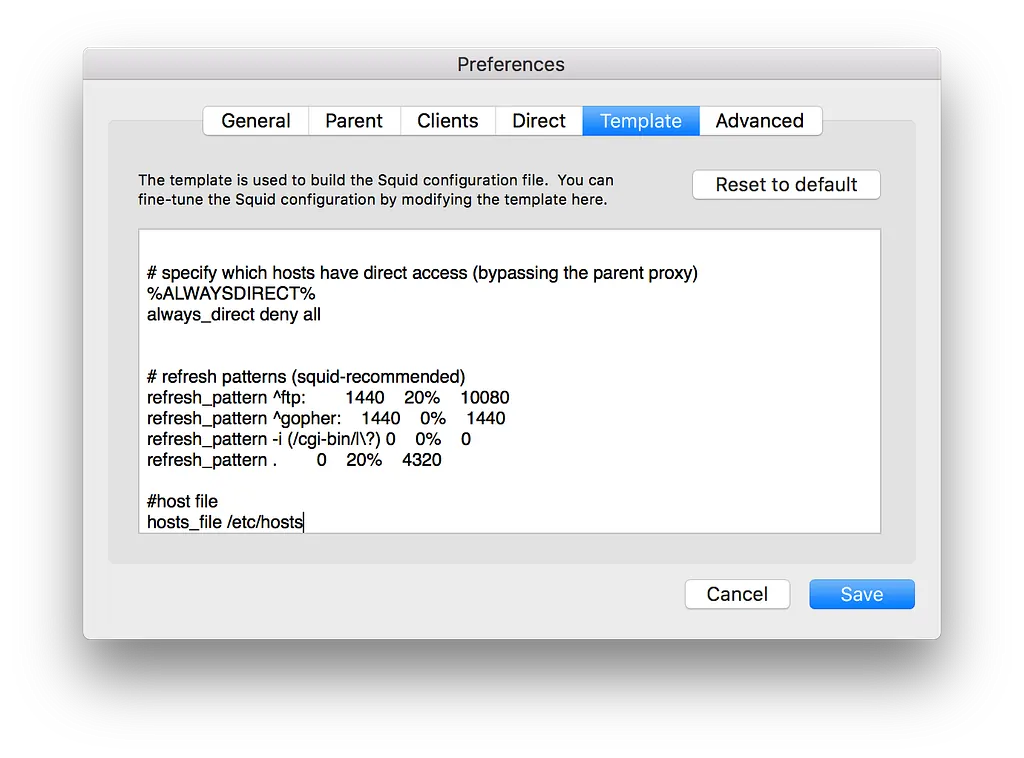

SquidMan Template preferences with hosts_file /etc/hosts added at the end of the Squid configuration

This means that SquidMan would use your local machine it’s hosts(file) to route the traffic trough.

Now press the save button and start SquidMan to use it.

Configure squid on your iPhone to forward traffic

Unlock your phone, go to Wifi networks (make sure you are on the same network as your machine) and press the ( i ) icon next to the network. This will open up network settings.

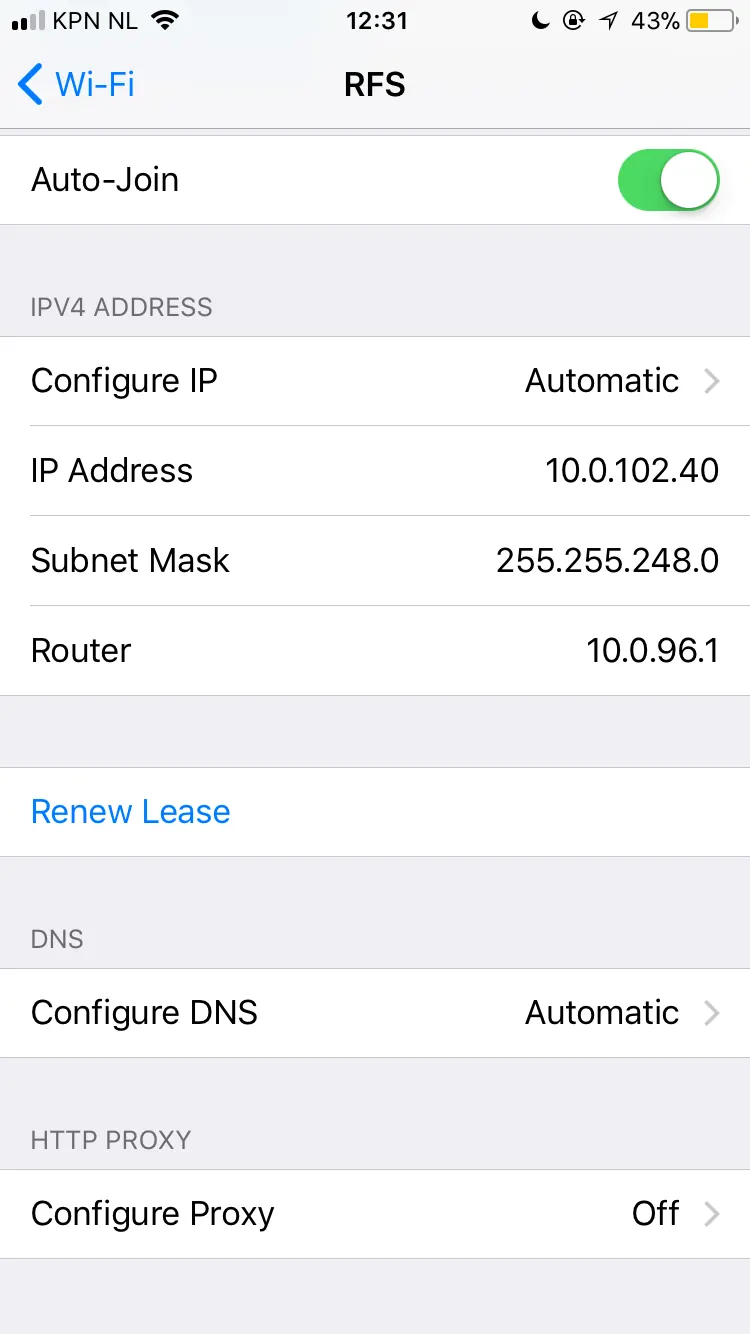

iPhone Wi-Fi network details with the HTTP proxy currently set to Off

Click on configure proxy Manual and configure based upon your SquidMan settings.

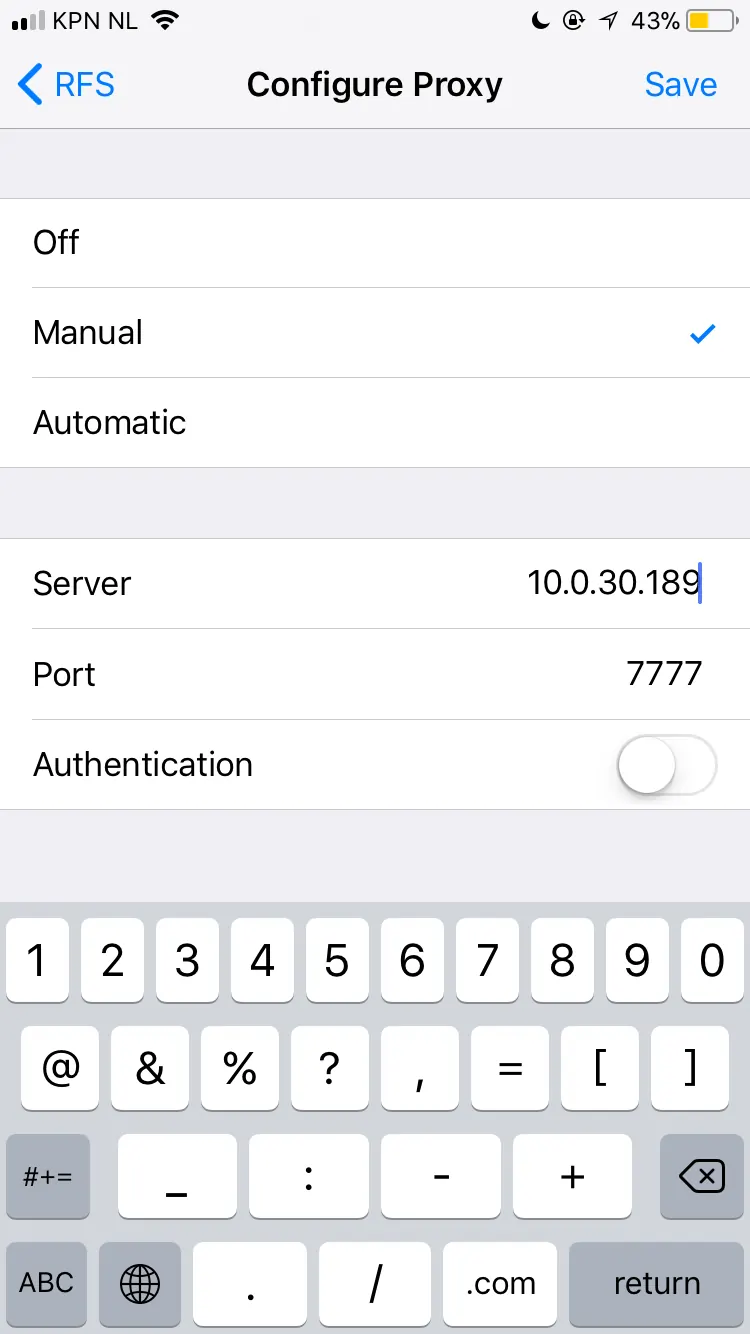

iPhone Configure Proxy screen set to Manual with server 10.0.30.189 and port 7777

Configure squid on your Android phone to forward traffic

Unlock your phone, go to Connections (make sure you are on the same network as your machine) and long-press the SSID (network name).

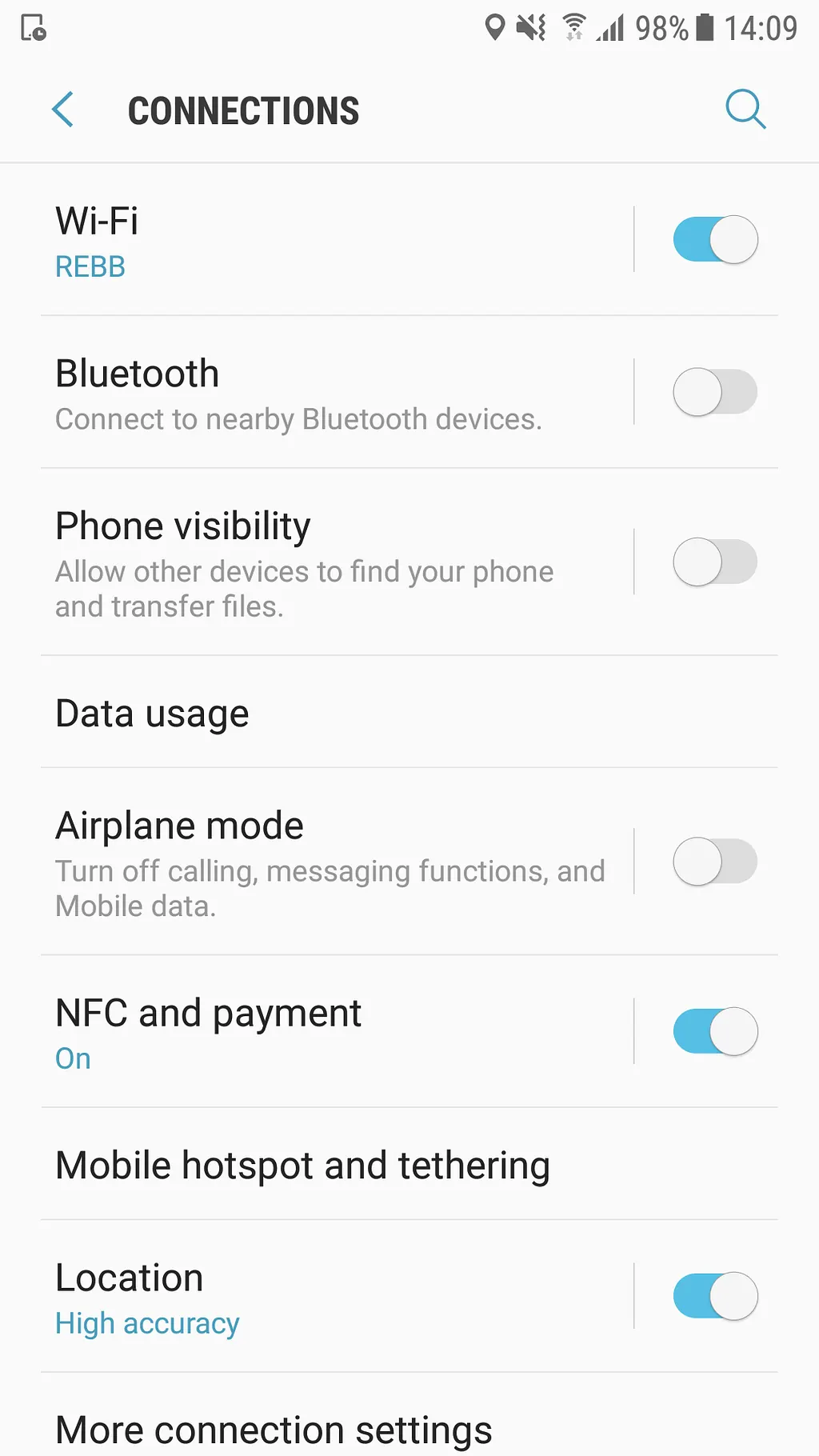

Android Connections settings with Wi-Fi turned on

This will open up a pop-up, click on Manage network settings.

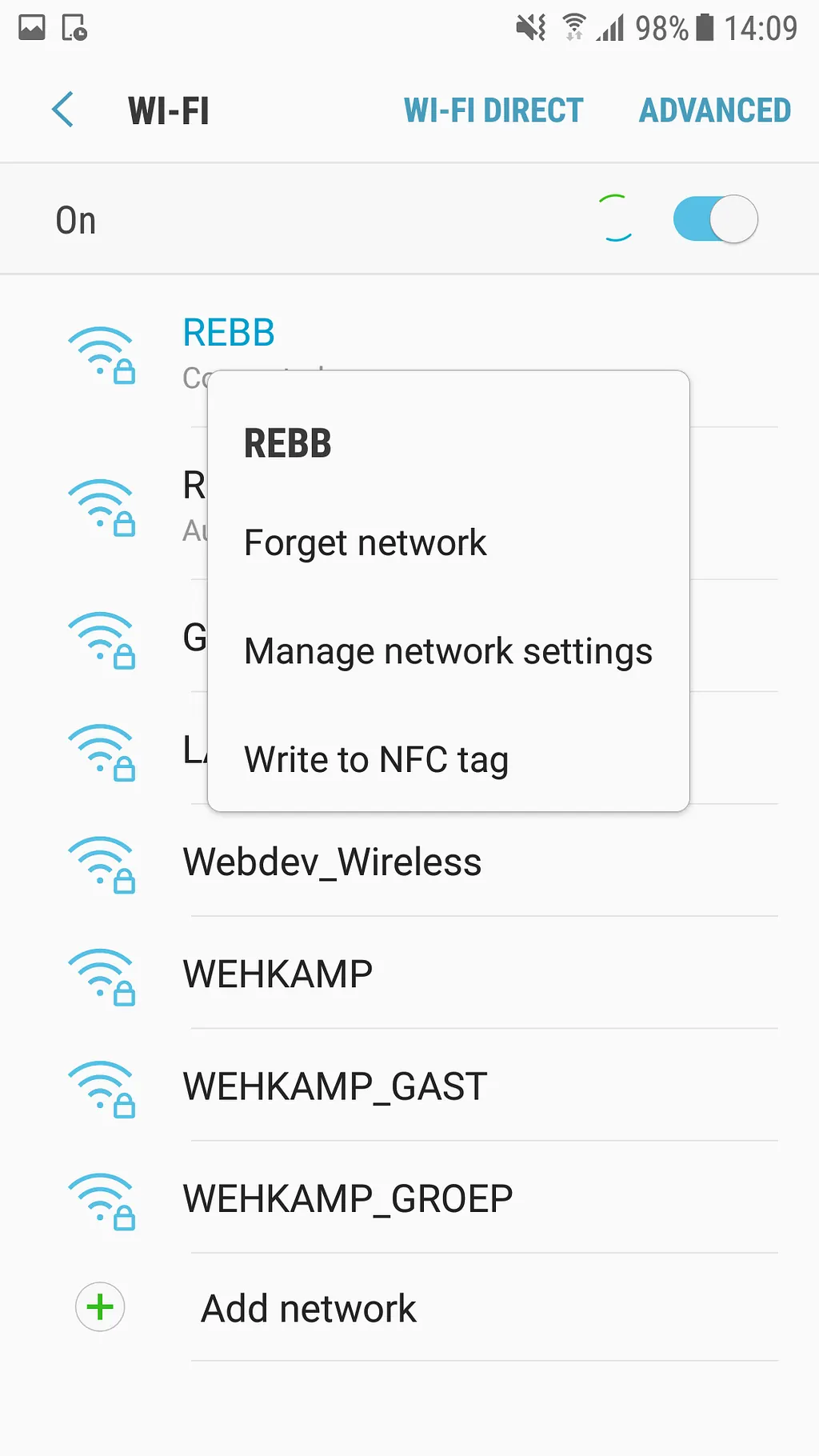

Android Wi-Fi list with a long-press menu offering Forget network, Manage network settings and Write to NFC tag

Another screen pops-up.

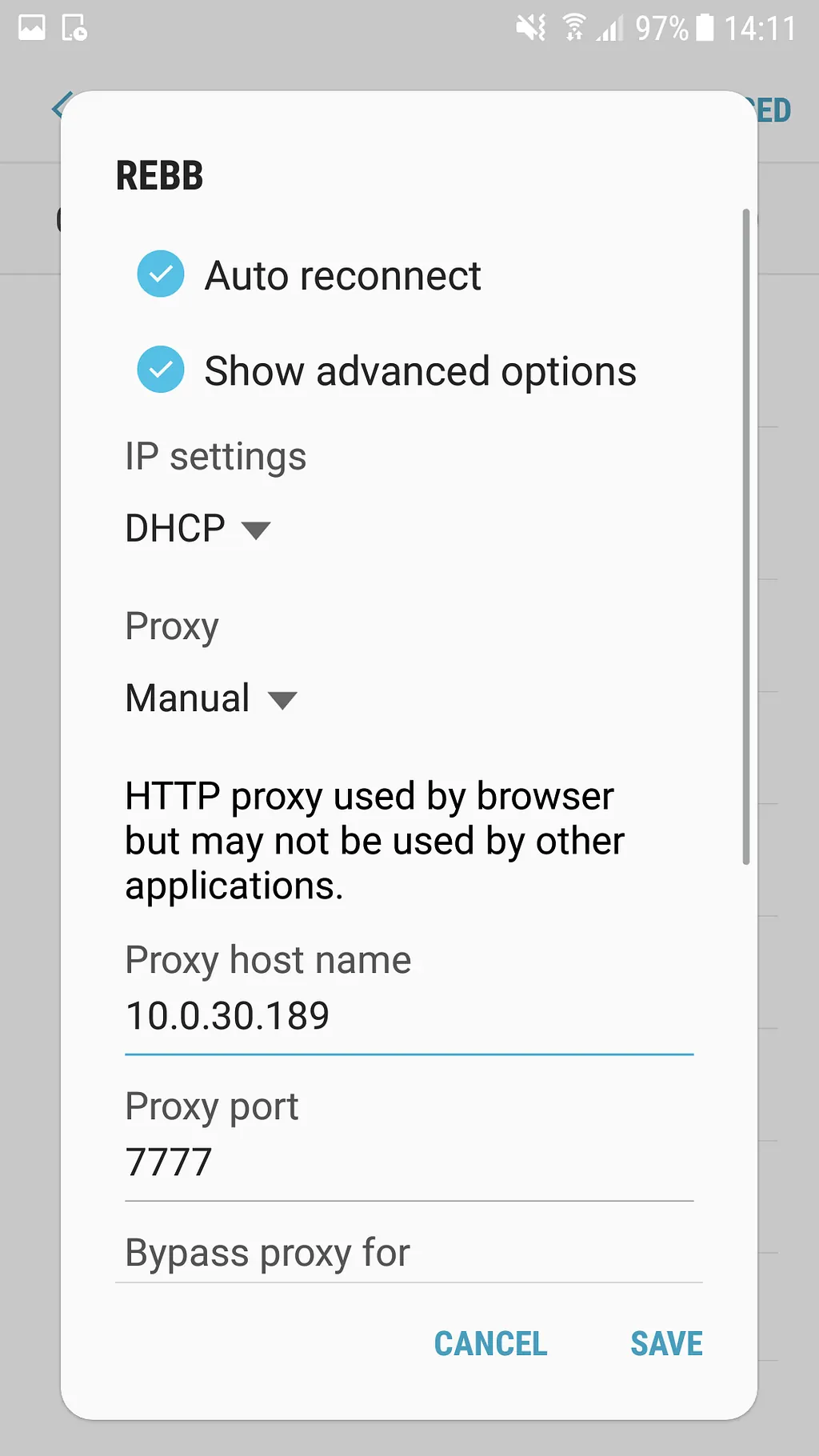

Android network dialog with advanced options shown, proxy set to Manual, host 10.0.30.189 and port 7777

Click on show advanced options, proxy Manual and configure based upon your SquidMan settings.

Press save and you’re done you can now visit your http://local-development-url.host on your mobile device through a proxy on your local machine. 🙌🏼 🚀
